Product Specifications
Specification
Value
Notes
System Capacity
6x8’s, 7x8’s, or 7x9’s. German Stacks shall have a total of 51 ties in five courses arranged with nine parallel ties per course along with one perpendicular stringer tie. The top fifth course shall have two perpendicular stringer ties.
Flat (Tram) stacks shall have a total of 44 ties in four courses. There shall be nine parallel ties per course along with two perpendicular stringer ties. Flat (Tram) stacks of 8’ long ties shall consist of 40 ties. There shall be eight parallel ties per course along with two perpendicular stringer ties. Tolerance of each tie no less than 1/4” under-size thickness and up to one over-length.
Notes
Dimensions
25’ wide x 40’ long including scissor lift
Notes
Heavy Duty Frame
4x10 tubing and 4x8 tubing
Notes

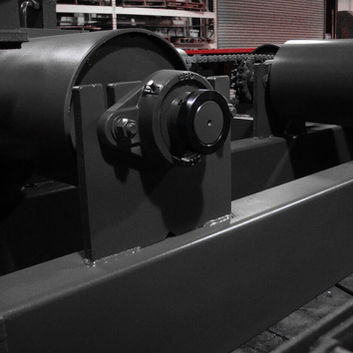

Rollers (A)
17 Rollers 14” long 10” diameter with 2-7/16” shaft
Notes
Rollers (B)
8 Rollers 23” long 10” diameter with 2-7/16” shaft
Notes
Chain
81x chain with S-Drive
Notes
Roller Chain
#80 Roller Chain
Notes
Carriage
1” plate 4"x10” tubing, (2) 1-5/8"x 12” tempered forks
Notes
Scissor Lift
8"x8"x1” angle, 1 1/4 plate, 4"x10” tubing, 4"x6"x1/2” angle
50 HP Hydraulic Unit
Motors, Cylinders, Valves, Hoses
Notes
PLC Controller
Allen-Bradley components
Stacking from bottom up
Setworks and operator screen, wireless remote control with 8 remote units.
Notes
Gallery
Customer Testimonials
Overview
Stacking Process so Unique, Its Patented
This patented process automatically stacks crossties in both the German Stack and Tram Stack Method.
